Notch Projector
CST-50 Impact Specimen Gap Projector for examine the tested gap
- Impact Testing Machine: Charpy Impact Testing Machine
- Impact Tester: Charpy Impact Tester
- Pendulum Impact Tester: Pendulum Charpy Impact Tester
- Impact Strength Testing Machine: Impact Strength Testing Machine

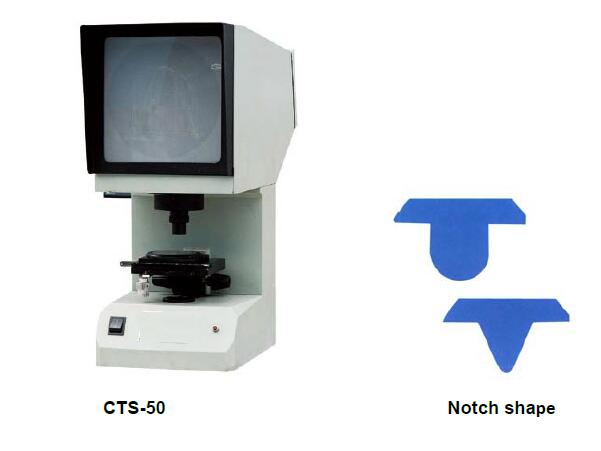

- Product description: Model CTS-50 Projector for Impact Specimen is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the measured parts to the screen to check their profiles and shape
CST-50 Impact Specimen Gap Projector for examine the tested gap
Applications
Model CTS-50 is a kind of special projector, which amplifies and projects the U or V-shaped
profiles of the measured parts to the screen to check their profiles and shapes with high
accuracy utilizing the optical projection method. It is widely used to check the U and V-shaped
notch of the impact specimen with the features of easy operation, simple structure, direct
inspection and high effectiveness.
Main specifications:
1. Screen diameter: 180mm
2. Working table
Square shape: 110x125mm
Round shape 90mm
3. Glass diameter of working table: 70mm
4. Working table travel (Length x width x height): ±10 x ±10 x ±12mm
5. Rotating range of round working table: 0—360 degree
6. Magnifications: 50X
Objective magnification: 2.5X
Projection objective magnification: 2.5X
7. Eye-field diameter: 3.8mm
8. Working distance: 22.89mm
9. Light source: tungsten lamp 12V 100W
10. Dimensions: 515×224×603mm
11. Weight: Approx. 20kG
PREVIOUS：pendulum impact testerNEXT：V-Notch Machine
