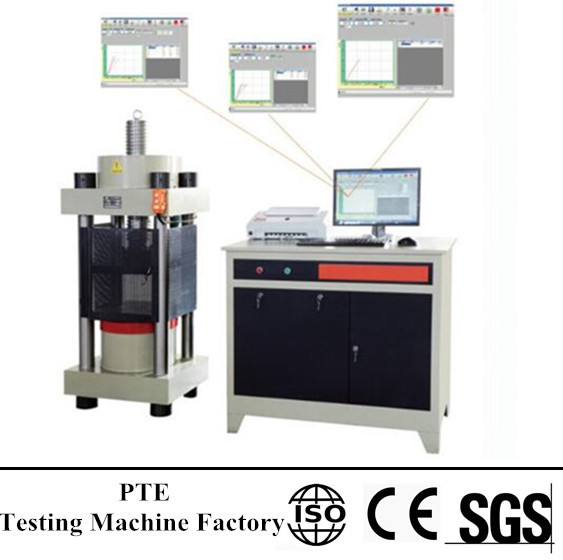

Product description: concrete compression testing machine price is used to is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete.
INQUIRY

Use:

Laboratory equipment digital concrete testing equipment, concrete compression test machine is mainly used in concrete, ceramic products, fire proof material,, engineering material, aerated concrete block, hollow brick, cement products, new building materials, stone, ore, pellets, compressive strength of rubber bearing and other building materials.It’s the indispensable laboratoryequipment for roads, railways, Bridges, construction, building materials, colleges and universities, and other industries.

compression testing machine manufacturer

Features:

1. adopts hydraulic loading, electronic load, a load of digital display, the loading speed, the maximum load, and remaining functions such as overload protection and power data.

2. This machine structure is compact, force sensor with high precision, stable value.Digital display test force and loading speed, the maximum test peak maintained, print the results.

3. Technical parameters

Model	YAW-2000	YAW-3000
Max. Load	2000kN	3000kN
Control method	Computer auto control loading process
Test space adjustment mode	Electric ball screw adjust
Oil source control cabinet structure	One-piece oil source control cabinet
Test class	1 class
Testing range	4%-100%FS
Load display accuracy	Better than ±1%
Piston stroke	100mm		150mm
Distance between upper and lower plate	330mm		500mm
Max space between two columns	370mm		400mm
Size of upper and lower platen	370×400mm		400×500mm
Power supply	2.1Kw/AC380V		2.3Kw/AC380V
